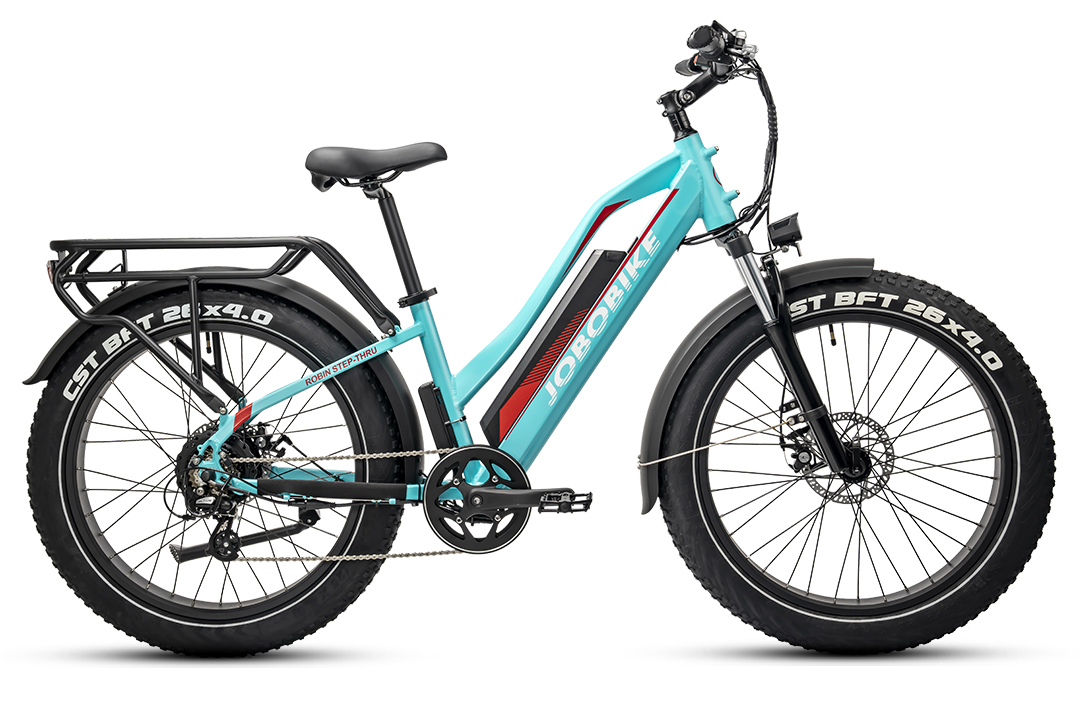

JOBOBIKE Robin ST
Step-thru Electric Fatbike
The Fatbike Robin Step-thru is JOBOBIKE's most powerful and dynamic e-bike. We offer two types of frames: high frame - Robin and low frame - Robin Step-thru, depending on the rider's height.
（Recommend）
€1599
≥65Km Range (Measured)
48V14.5AhLithium Battery
25Km/h Top Speed
Bafang Powerful MotorMax 80 N.m
JOBOBIKE Robin ST
The Robin ST is suitable for commuting, adventure and even snowy terrain. On different types of surfaces, fat bikes will perform brilliantly, whereas bikes with thinner tires will simply collapse. And Robin Step-thru ebike is suitable for everyone because of its low frame and ease to pass the leg and start enjoyable riding!
BETTER BALANCE AND GRIP
E-bikes with fat tires are ideal for off-road. Thick tires improve the control and balance of the ride, and Robin uses CST/Kenda 26"X4.0", run-flat tires with wide rims that greatly increase its durability.
A DIFFERENT DESIGN OF STEP-THRU
The Step-Thru electric bike frame usually has a very low top tube height of 480 mm, which is an ideal electric bike for women, beginners, people with bad knees and older people. (It is also friendly to women in e-bike skirts).
EXCELLENT SHOCK ABSORPTION
The Robin is equipped with a hydraulic RST 80 mm suspension fork with rebound adjustment and lockout function. Depending on the terrain, the rebound setting and lockout function can be adjusted.
DETAILS
696Wh Battery
The Robin has a 48V 14.5Ah battery with BMS battery system that protects you from overcharging and overheating.
Bafang Motor
Bafang 250W brushless hub motor with 80 N.m torque for stable performance and provides powerful power.
LCD Display
LCD display for clear presentation of all required data, such as battery, pedaling assistance level, speed, etc. Equipped with a USB port.
Tektro Mechanical Brakes
Tektro mechanical disc brakes with shorter braking distances and better braking performance, allowing you to control your speed sensitively.
Shimano 7-speed Freewheel
Shimano 7-speed freewheel for better adaptation to different road conditions, such as sand, forest, mountain and snow.
Front Suspension
Robin series is equipped with RST adjustable suspension fork, which can reach up to 80mm travel, so that rider can achieve the best riding experience on different terrains.
- A-Handlebar height 990-1150mm
- B-Total length 1960mm
- C-Wheelbase 1235mm
- D-Wheel size 26"*4.0
- E-Seat height 870mm-1100mm
- F-Stand over height 750 mm
- G-Length seat tube 500mm
- H-PSI range 5-30 PSI
- I-Total weight 120kg
- J-Stand over height 480mm
SPECIFICATION
- Battery
- 48V 14.5Ah(696Wh) lithium battery
- Frame
- 6061 Aluminum alloy
- Motor
- 48V 250W Bafang Max.80N.m
- Handlebar
- Aluminum alloy 720mm
- Display
- Color LCD with USB port
- Saddle
- Velo leather comfort saddle
- Charger
- AC110-240V DC48V2.0A
- Kickstand
- Single-leg aluminum alloy
- Front Light
- Bright LED light with 60 LUX
- Pedals
- Wellgo mountain type
- Rear Light
- With brake light function
- Seatpost
- Aluminum alloy Φ31.8×350mm
- Pedal Assist
- Intelligent 5 levels pedal assist
- Fenders
- Black PVC fenders
- Tires
- CST/Kenda 26"x 4.0"
- Derailleur
- Shimano 7-speed
- Front Fork
- RST hydraulic suspension fork
- Controller
- 48V250W
- Crank
- Aluminium alloy 42T
- Chain
- KMC
- Range
- ≥65Km (Measured riding on a full charge, flat road, 80kg rider)
- Suspension
- RST aluminum hydraulic suspension
- Recommended Height
- Above 160cm
- Brakes
- Tektro mechanical disc brakes
- Load Capacity
- 120kg
- Brake Levers
- Tektro comfort grip levers with integrated bell
- N.W.
- 34.6kg
- Brake Rotors
- Tektro 180mm front & rear
- Total Weight
- 44kg
- Type
- All Terrains Electric Fatbike
- Feature
- Fat Tire & Powerful
- Applicable Scene
- All Terrain
2-year
warranty
warranty
20 days free
test ride
test ride
Free shipping
to EU
to EU
Assembling and service at
your local service points
your local service points
FAQ
Read more
- What is a fat tire electric mountain bike?
The Fat Tire Electric Mountain Bike is a mountain bike with fat tyres and an electric power assist system. The fat tyres are wider than normal mountain bike tyres and provide better passing and stability, while the electric power assist system helps the rider to climb steep hills or travel long distances more easily.
- What wheel size should I choose for my fat-tire electric mountain bike?
Fat tyre electric mountain bikes are usually available with a wheel diameter from 20" to 26". Both sizes provide adequate passing and stability and the choice of size depends largely on individual needs and height and weight.
- Why choose fat tire e-bike?
Fat tire electric bikes are ideal for all-terrain like sand, snow, mud, mountain and so on, because of they provide more stability and traction over these types of surfaces.
